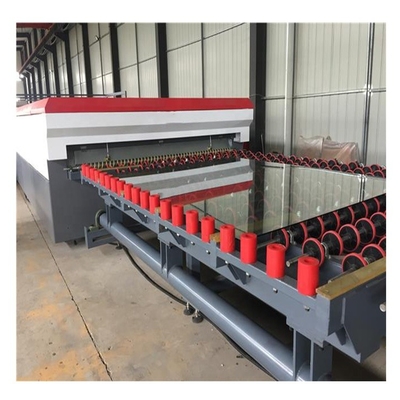

Dericen Gas Glass Precision Annealing Furnace With Net Belt Furnace
Furnace length: | > 30m, assembled; |
Maximum operating temperature: | 850 ℃ (adjustable temperature) |
Gas power: | 30-100 kcal; |
Electric power: | 15-60 (kW / 380V) |
Fuel type: | natural gas, coal gas and liquefied gas; |
Heating mode: | flame insulation heating with silicon carbide radiant plate at the bottom of furnace; |
Smoke exhaust mode: | natural smoke exhaust from chimney and waste heat utilization; (power smoke exhaust is also available) |
Burner: | imported power burner; |
Temperature control mode: | automatic ignition, automatic constant temperature, adjustable temperature and fault alarm; |
Temperature control points: | 4-8; |
Roll bar specification: | φ 40-80mm high alumina ceramic roller; |
Transmission mode: | helical gear; |
Roll speed control: | variable frequency speed regulation; |
Cooling mode: | air cooling at discharge port can be designed. |
